1000l IBC Matanki Madzi Omwe Amadziunjikira Makina owunda

Model:KGB1000L- IBC

Khalani ndi mphamvu ndi kukhazikika kwa matanki a KGB1000000l Ibc Surnstete Makina owumbidwa, ali ndi kulemera konse kopitilira matani 55 kuti muchepetse kugwedezeka ndi kusamuka. Ndodo za diagoonal yolumikizirana ndi central cell-cylinder yowuma zitsimikiziro kuti mugawanitse nkhungu, kukulitsa kulondola kopangidwa moyenera.

Buku: 1000lKulemera: 55t

Tumizani Kufunsira

Mafotokozedwe Akatundu Specification Application

Makina a 1000l ibc IBC IBC IBC Kudziunjikira Makina owumbika amaphatikiza mfundo zapamwamba zowomba zaukadaulo za ukadaulo ndi zopangidwa zingapo kuti zichepetse bwino komanso kukhazikika kwa zinthu. Zabwino pakupanga ziweto zazikulu, kuphatikizapo ma tanki amadzi owumbira, makinawa amapangidwira Drum Brams mpaka 1000l, ndikupanga kukhala koyenera kupanga ng'oma yamagalimoto, magalimoto ambiri amakaunti ambiri, ndi zina zambiri. Lumikizanani nafe lero kuti mumve zambiri ndikufufuza mtengo wathu wampikisano wamadzi.

Mawonekedwe ndi zabwino

Zida zonse zimatha kufika matani 55, moyenera kuchepetsa kugwedezeka ndi kusamutsidwa kwa makina, ndikusintha kolondola kwapamwamba komanso kukhazikika.
● Zingwe ziwiri zam'madzi ndi zingwe zapakati pa cell
● Kupanga magawo ambiri kumachepetsa mtengo wopangidwa ndikusintha kukhala koyenera
● Zoyenera kupanga zinthu zazikulu pulasitiki monga nsanja zamadzi, akasinja osungira, zotengera zamankhwala, etc.

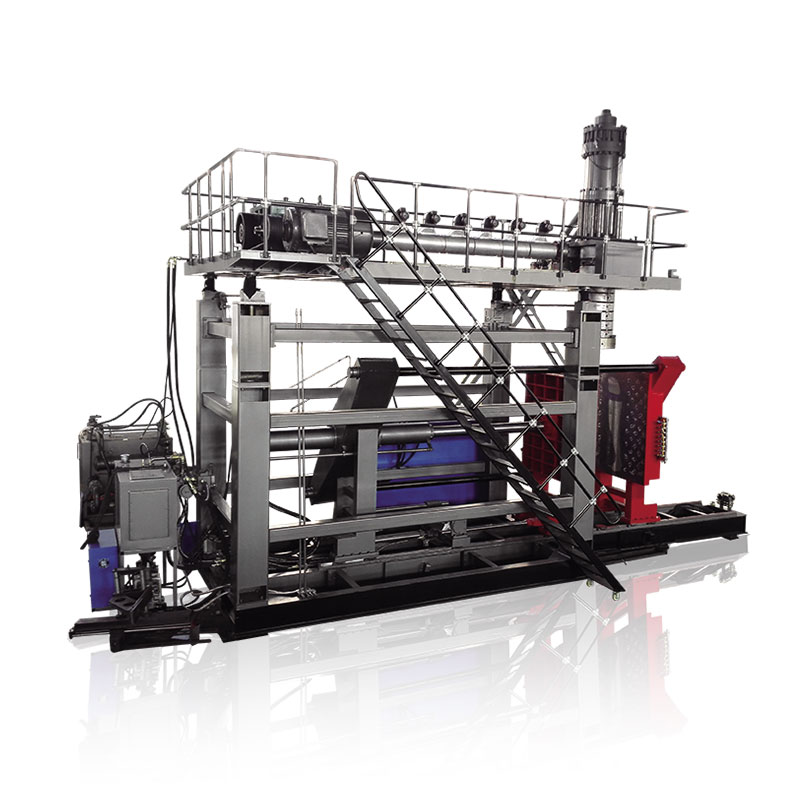

1000L IBC water tanks accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGS1000L-IBC
Specifications
1	Max container capacity	1000 L
2	Output(dry Cycle)	150 L

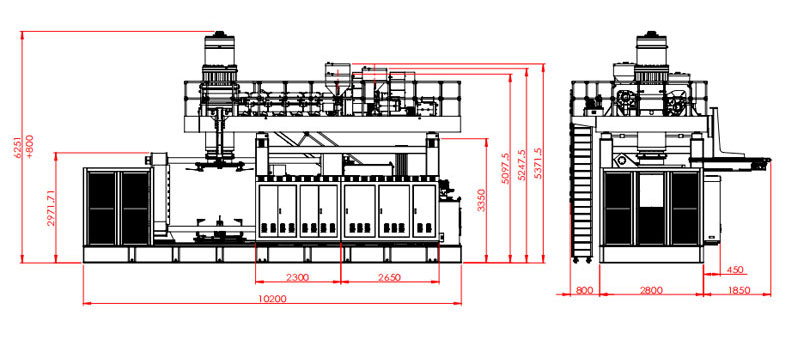

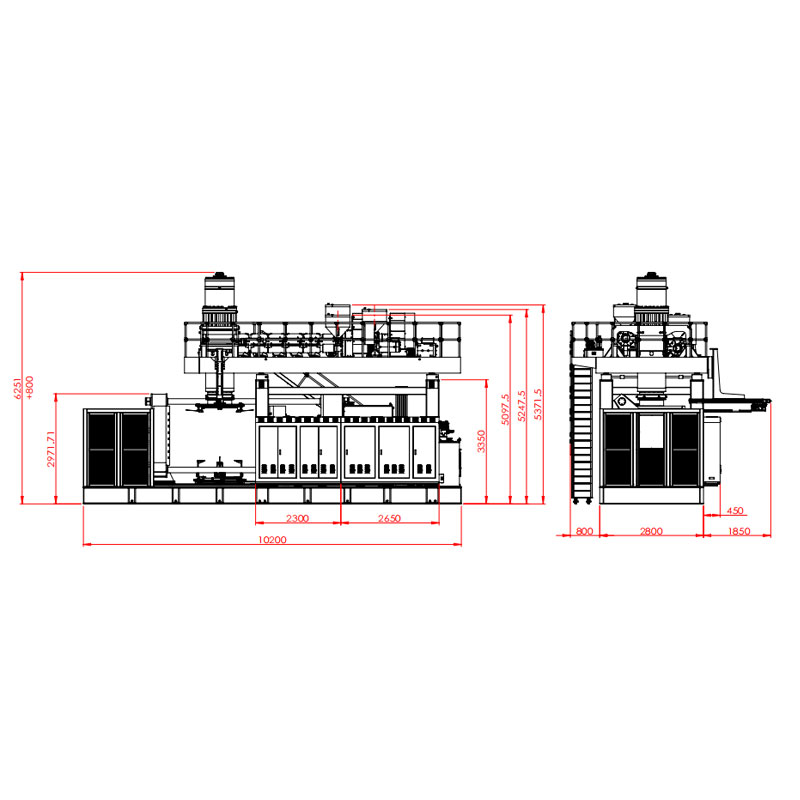

3	Machine Dimension(L×W×H)	9.5 M x 5.1 M x 6.5 M
4	Machine weight	55 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1800 MM x 1600 MM
3	Platen opening stroke	1150 MM - 2700 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1600 MM x 1500 MM
6	Mold thickness	1200 MM - 1400 MM
Power
1	Servo oil pump motor power	25 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	2 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	110 KW - 150 KW
Extruder unit
1	Screw diameter	100 MM x 2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	45 L
5	(PE)Accumulator weight	33 KG
