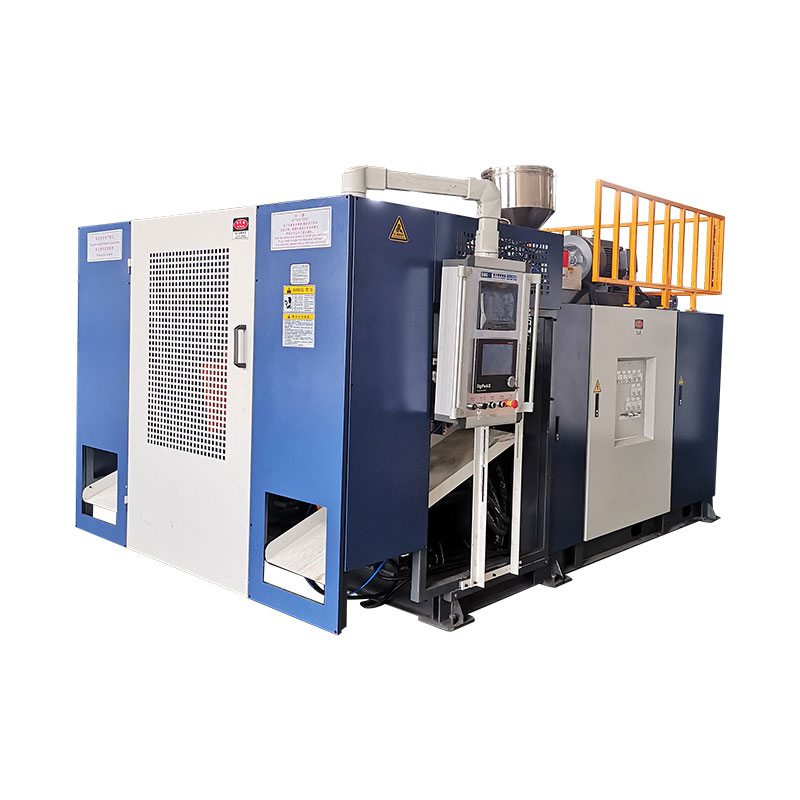

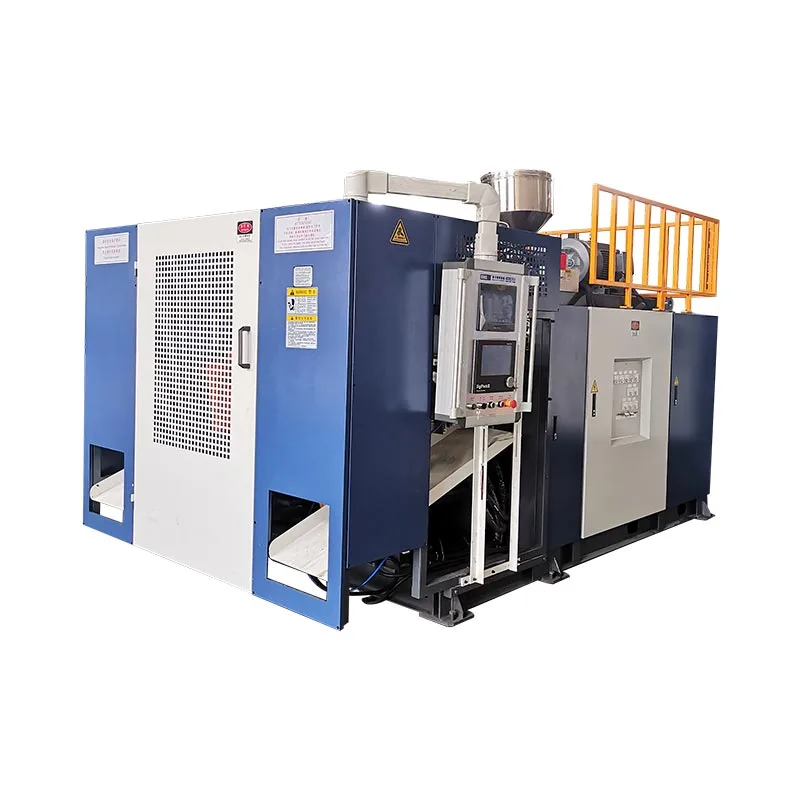

5L Stud Conw Light Makina oyendetsa

Model:KGB5D

Onjezerani kapangidwe kanu ndi gawo lathu la 5L lowirikiza pamawu owumbira. Makina apamwamba kwambiri awa amapereka masinthidwe osinthika, kuphatikizapo 2, 3, kapena 4-kufa kukhazikika kwa mitu yambiri, kuti agwirizane ndi zidenga zosiyanasiyana.

Buku: 5lKulemera: 5.2T

Tumizani Kufunsira

Mafotokozedwe Akatundu Specification Application

Kuchokera m'mabotolo ang'onoang'ono mpaka m'matumba akulu a 5l, izi 5l station station yowombera makina owumba kupanga bwino komanso kusasinthika. Zabwino pazinthu zosiyanasiyana, kuphatikiza kutsuka phukusi la Phukusi la Phukusi la Makina Othandizira Makina, Iwo Amapereka zotulutsa zapadera ndipo zimakulitsa kubweza kwanu pa ndalama.

Mawonekedwe ndi zabwino

● Kusungunuka kopitilira muyeso, pogwiritsa ntchito valavu ya buffer
● Mutu wa Dive umatengera fomu yapamwamba
● Malonda a zamagetsi amatengera Mitsubishi plc Control, ndipo mabatani odziyimira pawokha amathandizira kukonza kukonzanso kwa ntchito ndi kusintha.
● Voliyumu yayikulu kwambiri ndi 5l, yomwe ndi zida zoumba zomwe zimakonda kupanga zida zopangira zosakwana 2-5l.
● Malinga ndi zinthu, imatha kugawidwa mgawo limodzi, wosanjikiza kawiri, masamba atatu osanjikiza, etc.
● Makina a hydraulic amatengera kapangidwe kosiyanasiyana, kuchita bwino kwambiri komanso kuthamanga mwachangu

Specifications

Serial number	Material PE、PP、PVC、PA...	Mold-moving series
Serial number	Material PE、PP、PVC、PA...	Machine model:KGB5D
Specifications
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	3.2 M×2.2 M×2.5 M
4	Machine weight	5.2 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MMx450 MM
3	Platen openingstroke	188 MM-538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM-310 MM
Power
1	Servooil pump motor power	15 KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.7 M³/MIN
5	Cooling water pressure	0.2 Mpa-0.3 Mpa
6	Water consumption	80 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	70 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	80 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	22 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	1MT Max die-pin diameter	150 MM
4	2 Center distance of double die head	150 MM-180 MM
5	2MT Max die-pindiameter	80 MM
