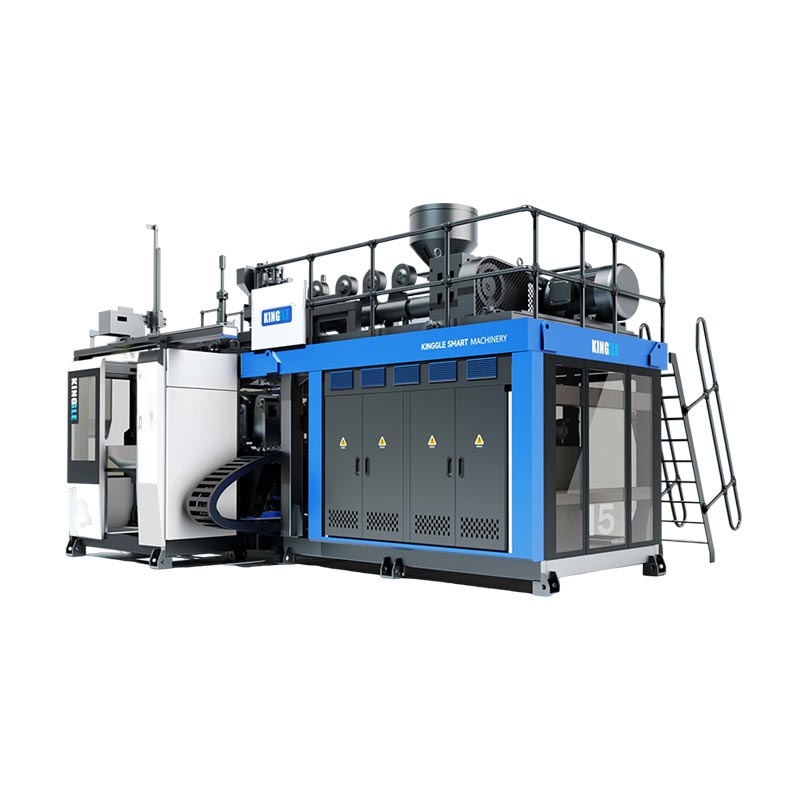

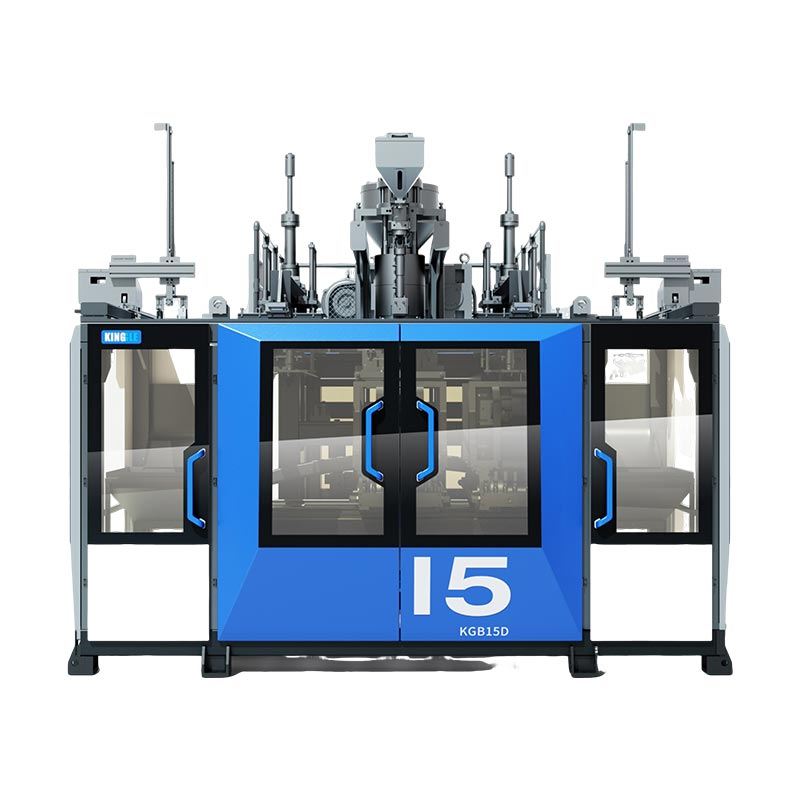

15L Stud Station Makina Opanga Makina

Model:KGB15D

Onjezerani kapangidwe kanu ndi gawo lathu losiyanasiyana lozungulira liwiro lowuge loumba loumba, lopangidwa kuti zikhale ndi zida mpaka 15l. Makina apamwamba kwambiri a 15l omwe amawomba makina owumba owumba amapereka kusinthasintha, kuphatikizapo 2, 3, kapena 4, kapena mafayilo am'mutu, kuti agwirizane ndi minyewa yosiyanasiyana.

Buku: 15LKulemera: 12.5t

Tumizani Kufunsira

Mafotokozedwe Akatundu Specification Application

Kuchokera m'mabotolo ang'onoang'ono mpaka m'matumba akulu 15L, kuphatikiza ma mbiya apulasitiki owundana, izi 15l station station yowombera makina owumba akuwongolera makina othandiza komanso osasinthika. Zoyenera kugwiritsa ntchito njira zosiyanasiyana, kuphatikizapo mankhwala owonera tsiku ndi tsiku, monga shampoo, zotchinga zolemitsa, komanso zodzola zodzola, zimapangitsa kutulutsa kwapadera, kumakulitsa kubweza kwanu.

Mawonekedwe ndi zabwino

Kuchulukitsa kawiri, kukwezedwa kwa ma 30l, pafupifupi pafupifupi kupanga mphamvu yopanga kuyerekeza ndi malo amodzi, komanso moyenera zofunikira zopanga zazikulu.
Okonzeka ndi chipangizo chosinthira kwambiri, valavu yopukutira yopukutira yoyang'anira nkhungu, kusintha kwa nkhungu msanga, nthawi yayifupi yovuta, yoperewera yotsika kwambiri, ndikuonetsetsa zotsekemera.
Mitsubishi Plc Grand Control, pulogalamu yoyambirira yosinthira magawo owumba, mabatani a zamanja kwa ogwiritsa ntchito ku calibrate monga amafunikira, komanso kulumikizana kwamakina ogwiritsa ntchito anthu.
Titha kupanga zotengera 15l ndi mtunda wosanjikiza, wosanjikiza kawiri, atatu-osanjikiza monga kufunikira, oyenera kukwaniritsa zosowa zamakampani angapo monga mankhwala, chakudya, ndi mankhwala opangidwa.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB15D
Specification
1	Max container capacity	15L
2	Output(dry Cycle)	450x2 PC/HR
3	Machine Dimension(L×W×H)	4.8M x2.9 M x2.8 M
4	Machine weight	12.5 T
Clamping Unit
1	Clamping force	165 KN
2	Mold platen size(W×H)	500 MM x 550 MM
3	Platen openingstroke	280 MM - 680 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	580 MM×550 MM
6	Mold thickness	300 MM - 380 MM
Power
1	Servooil pump motor power	18.5KW
2	Servo pump displacement	130 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.1 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	110 L/min
7	Average energy consumption	25 KW-34 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	120 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	45 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	2Center distance of double die head	240-280MM
5	2MTMax die-pindiameter	150MM
