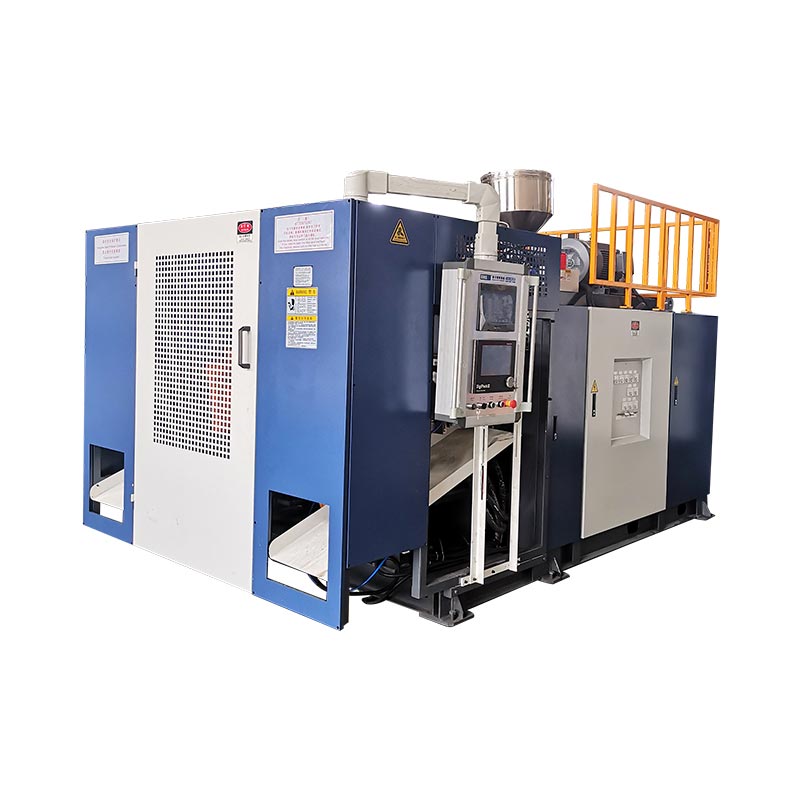

5l Station Station Opt Makina opanga makina

Model:KGB5L

Khalani ndi kusinthasintha ndi kusintha kwamphamvu kwa makina athu owumba owumba. Konzani zotengera 5L, izi 5l station iyi yopukutidwa makina owumba amapereka njira zomangira, kuphatikizapo zoperekedwa zoperekedwa, kukwaniritsa njira zomwe mukupanga.

Buku: 5lKulemera: 3.0t

Tumizani Kufunsira

Mafotokozedwe Akatundu Specification Application

Kaya mukufuna malo odzipereka a 5l Lumikizanani nafe lero kuti tisanthule mitengo yathu yopikisana ndi kupeza momwe makinawa angapangire kuthekera kwanu.

Mawonekedwe ndi zabwino

● Mphamvu imodzi yosinthira bwino yosinthira bwino, yolumikizidwa ndi Veficer Throttle Valve kuti muwonetsetse bwino ntchito zosalala komanso zosinthika.
● Mutu wafa unapangidwa ndi dongosolo lodyetsa, kutsatsa zinthu zowonjezera za malonda.
● Ma storm apadera apadera amathandizidwa ndi Mitsibabishi PLC, ndipo amalola ogwiritsa ntchito kuti akhazikitse mwachangu komanso molondola molondola komanso kusinthasintha mosavuta.
● Ndi kuchuluka kwa kuchuluka kwa 5l, imayima ngati njira yapamwamba yopangira zotsekemera zamitundu iwiri kuyambira 2L mpaka 5l.
P.
● Mphamvu ya hydraulic ili ndi kapangidwe kake, kupereka chogwira ntchito bwino komanso kuthamanga kwayankho mwachangu, kumachepetsa mphamvu zonse zowonjezera.

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB5L
Specification
1	Max container capacity	5L
2	Output(dry Cycle)	500 PC/HR
3	Machine Dimension(L×W×H)	3.1M x2.2 M x2.5 M
4	Machine weight	3.0 T
Clamping Unit
1	Clamping force	65 KN
2	Mold platen size(W×H)	368 MM x 450 MM
3	Platen openingstroke	188 MM -538 MM
4	Platen moving stroke	420 MM
5	Max mold size(W×H)	410 MM×450 MM
6	Mold thickness	200 MM - 310 MM
Power
1	Servooil pump motor power	15KW
2	Servo pump displacement	100 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	0.6 M²/MIN
5	Cooling water pressure	0.2-0.3 Mpa
6	Water consumption	60 L/min
7	Average energy consumption	16 KW-25 KW
Extruder unit
1	Screw diameter	60 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	55 Kg/hr
4	Number of heating zone	3 ZONE
5	Screw heating power	12.6 KW
6	Screw fanpower	0.25 KW
7	Extruder motor power	15 KW
Die head
1	Number of heating sections	3*8 ZONE
2	Heating power	3.7 KW
3	Maxdie-pin diameter	150 MM
4	2Center distance of double die head	150-180MM
5	2MTMax die-pindiameter	80MM
