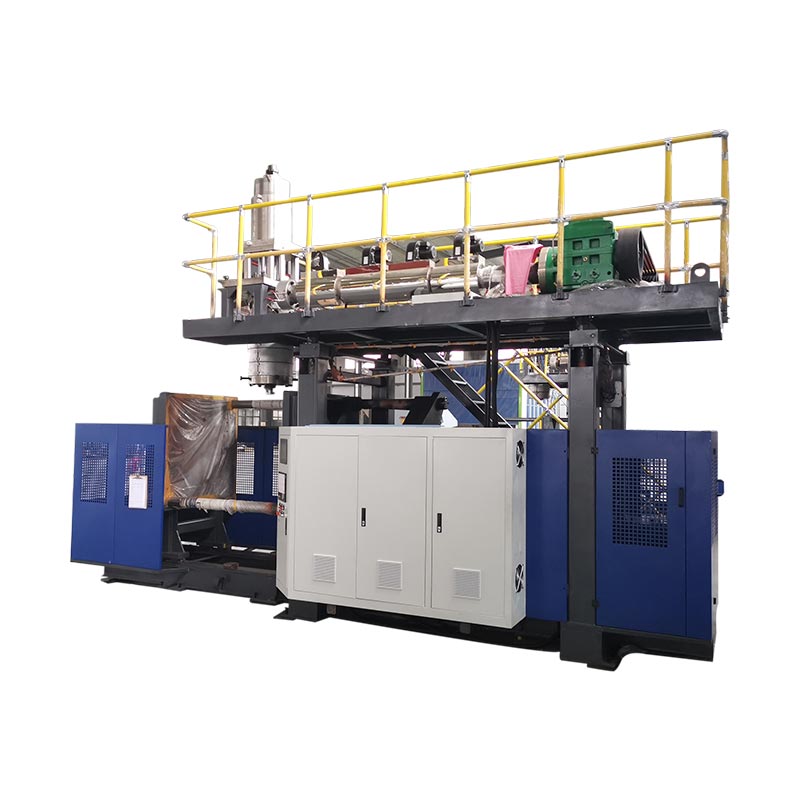

250L yodziunjikira makina owumba

Model:KGB120E

Makina otseguka ndi otseka owundana, ali ndi ma rod ophatikizira ophatikizika ndi ma cylinder stallider popindika pang'onopang'ono kutseka nkhungu. Okonzeka ndi ma hydralsic servo yankhani yoyankha mwachangu, 250l yodziunjikira iyi yowumba makina amayenda bwino popanga zinthu zosiyanasiyana, kuchokera pazovala zazing'ono kwambiri.

Buku: 250LKulemera: 28t

Tumizani Kufunsira

Mafotokozedwe Akatundu Specification Application

Mtundu wa KGB120E, mutu wotsogola ufa wowumbedza, imaphatikizapo mooge olamulira 100, mkono waboti, ndi kuwomba pansi kachitidwe, kulimbikitsa zokolola ndi mtundu. Makina a 250L omwe amaumba makina owumba ndi abwino Zogwiritsa ntchito zosiyanasiyana, kuphatikizapo magome a commicemake owombera makina owumba Mayankho, mapira apulasitiki amawombera makina owumba makina, madzi apulasitiki Tank adawombera makina opanga makina, ndikupanga 200-220l Mimba yothamanga kwambiri, akasinja agalimoto, ma auto, zotchinga zamagalimoto, mankhwala Mipando, yoyandama, mipando, matebulo, mabwato, ndi zina zambiri.

Mawonekedwe ndi zabwino

Amagwiritsidwa ntchito popanga zinthu m'mafakitale osiyanasiyana. Kaya ndi mabotolo ambiri osagwirizana ndi mankhwala, mabotolo a mabotolo okhazikika pamakampani azakudya, kapena mabokosi okhala ndi zopangidwa ndi zinthu zochulukirapo zamankhwala, amatha kuwongoleredwa moyenera kukwaniritsa zofuna kusintha.
Njira yodyetserako zaukadaulo wodula ndipo imakhazikika potengera mawonekedwe apamwamba kwambiri a makina a 120e. Sungani molondola kuchuluka ndi kugawa kwa zinthu zopangira kuti zitsimikizire khoma la mayunitsi la ultra nthawi zambiri, ndikuthetsa zovuta za malonda, ndikuchotsa zofooka zamtunduwu chifukwa cha kudyetsedwa.

250L accumulate blow molding machine

Specifications

Serial number	Material PE、PP、ABS...	Mold closing oil cylinder(single cylinder)
Serial number	Material PE、PP、ABS...	Machine model:KGB120E
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR

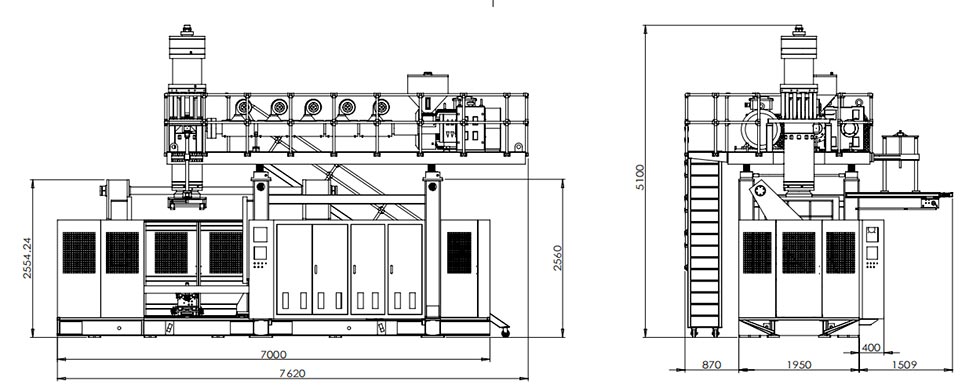

3	Machine Dimension(L×W×H)	7.6 M x 4.3 M x5.5 M
4	Machine weight	28 T
Clamping Unit
1	Clamping force	800 KN-1200 KN
2	Mold platen size(W×H)	1300 MM x 1400MM
3	Platen opening stroke	800 MM-1800 MM
4	Platen moving stroke	700 MM
5	Max mold size(W×H)	1100 MM x 1700 MM
6	Mold thickness	810 MM - 900 MM
Power
1	Servo oil pump motor power	37 KW
2	Servopump displacement	250 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	80 KW -90 KW
Extruder unit
1	Screw diameter	120 MM
2	Screw L/D ratio	25 L/D
3	HDPEMelting capacit for HDPE	250 Kg/hr-320 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90(110) KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	600(700) MM
4	Accumulator capacity	20(25) L
5	(PE)Accumulator weight	15(18) KG
