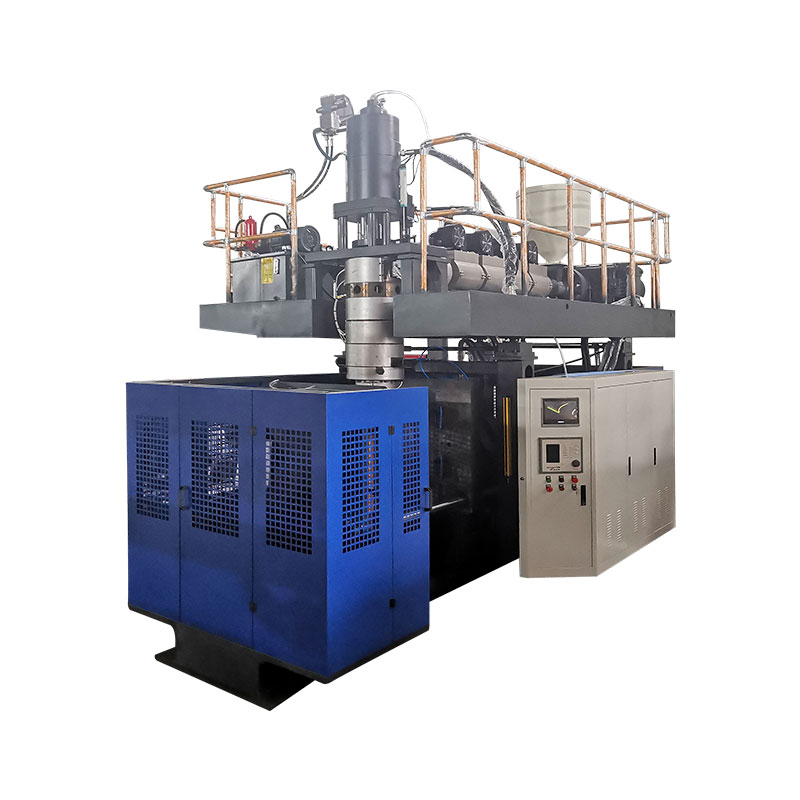

60l Theurs Coupturtor Makina Ojambula

Model:KGB90AP

Kwa KGB90ap, mphamvu ya 60l yopukutira Makina owumba makina ophatikizira awiri kapena awiri a mtundu wa makina owumba makina. Amapangidwa mwapadera kuti azigwiritsa ntchito makina owiritsa kawiri ndi kawiri

Buku: 60lKulemera: 15t

Tumizani Kufunsira

Mafotokozedwe Akatundu Specification Application

KGB90ap 60l Pulcumulator Makina Omwe Amakhala Ndi Njira Yopitilira Yowonjezera imatha kukhala yosanjikiza kawiri kapena zopanga zopanga kawiri kuti muwonjezere malonda adalira.
Imaphatikizapo mooge olamulira 100, mkono waboti, ndi kuwomba pansi kachitidwe, kulimbikitsa zokolola ndi mtundu. Makina otsutsa ndizabwino pakugwiritsa ntchito kosiyanasiyana, kuphatikizapo madontho a Commicem Drum kuwomba Makina Othetsa Makina, Kutalika kwa pulasitiki kumayambitsa njira zamakina ,.

Mawonekedwe ndi zabwino

Mtunduwu ndi mtundu wotseguka wokhazikika komanso wotseka, pogwiritsa ntchito ndodo ziwiri Njira yotsekera yotseka nkhungu, ndipo cylinder ya mafuta opanikizika Kuyanjikana
Kusunga kwa Cylinder Kufa Mutu
Kuchuluka kwa voliyumu 60l
Malo Oyenera Photoolx, etc.
Kugwiritsa ntchito ukadaulo wapadera, kuyika makina osindikizira dongosolo, lalikulu cloling Force, kuthamanga kwamphamvu pang'ono, kuthamanga kwakanthawi

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

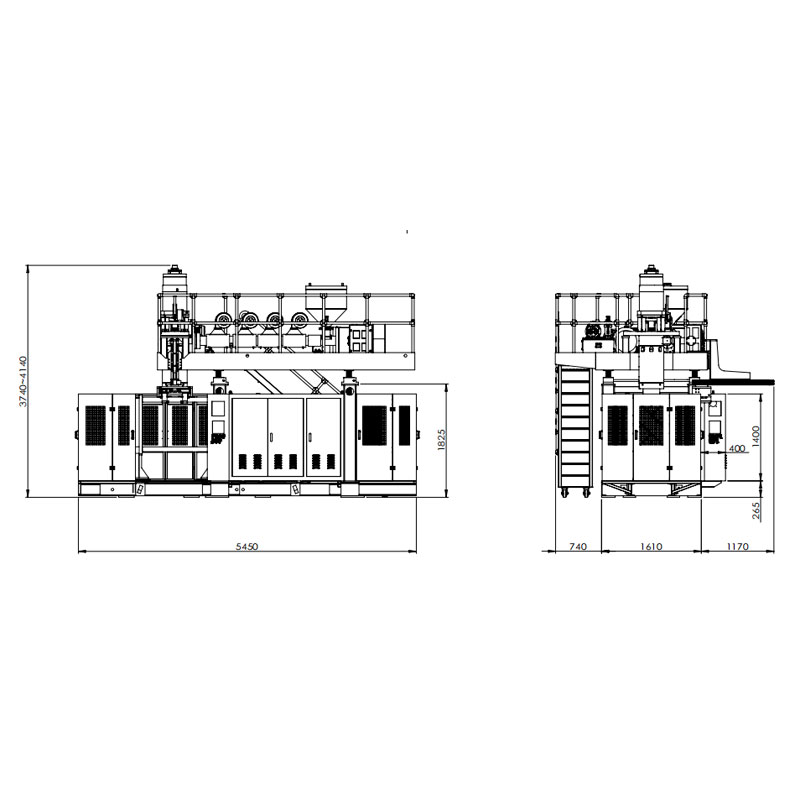

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
