250L imadzisonkhanitsa ma barrel rizini

Model:KGB200L/LP

Katswiri wapadera 250l amadziunjikiza makina owombera a mbiya owumbira apadera amapangidwira kuti apange migolo yambiri 220l yobiriwira. Kugwiritsa ntchito makina okhazikika okhazikika ndi mkono wopingasa wophatikizira dongosolo lolumikizirana, limapangitsa kuti zikhale zokhazikika komanso zokhazikika zimapangitsa kupindika modekha.

Buku: 250LKulemera: 39t

Tumizani Kufunsira

Mafotokozedwe Akatundu Specification Application

Kusanjikiza kawiri kowirikiza, yowonjezera kwambiri mutu mutu, kuphatikiza Ndi gawo lalitali kwambiri, limapereka zotsatirapo zapadera. Ichi Makina a mbiya owombera amaphatikizira mooge 100 makulidwe Wolamulira, mkono wa Robot, ndi pansi powombera njira yolimbikitsira bwino. Druma omwe amapangidwa amakumana ndi miyezo yapamwamba, kuphatikizapo popita 3-meter dontho ndi kupeza chiphaso.

Mawonekedwe ndi zabwino

Kutulutsa kawiri koyambirira kwa corlental corliner yosungirako kosungira kumafa mutu
● Kukwaniritsa mphamvu yopanga kwambiri kudzera mu kapangidwe kokhazikika komanso molondola Kupanga, Kutha Kupanga Zidutswa 1750/9
● Mbava zopangidwa zimatha kudutsa mayeso a 3m ndikumaliza kupeleka chiphaso

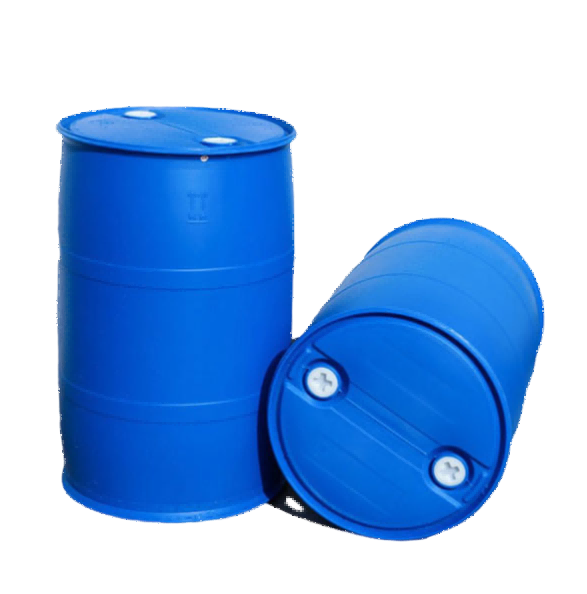

200l manyowa: 12-15 makilogalamu

Zinthu: Hmwhdpe

Makulidwe: 3.5-4 mm

Izi zojambula zamagetsi zamagetsi izi zimapangika makina owumba zimapangidwa kuti zizipanga bwino kupanga mitsuko yautali ya 220l yobiriwira. Kugwiritsa ntchito makina okhazikika okhazikika, mkono wopingasa wophatikizika ndi dongosolo lolumikizirana, ndipo mawonekedwe osanjikiza awiri, okonda kwambiri, okonda kwambiri mutu, amapereka magwiridwe antchito.

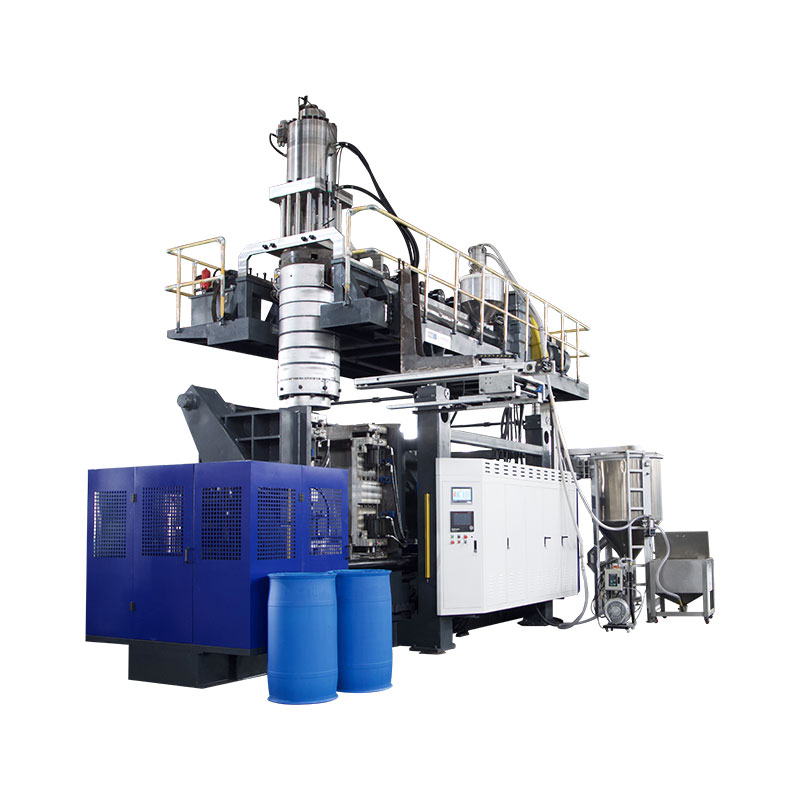

Double layer 220L double-ring chemical barrel blow molding machine

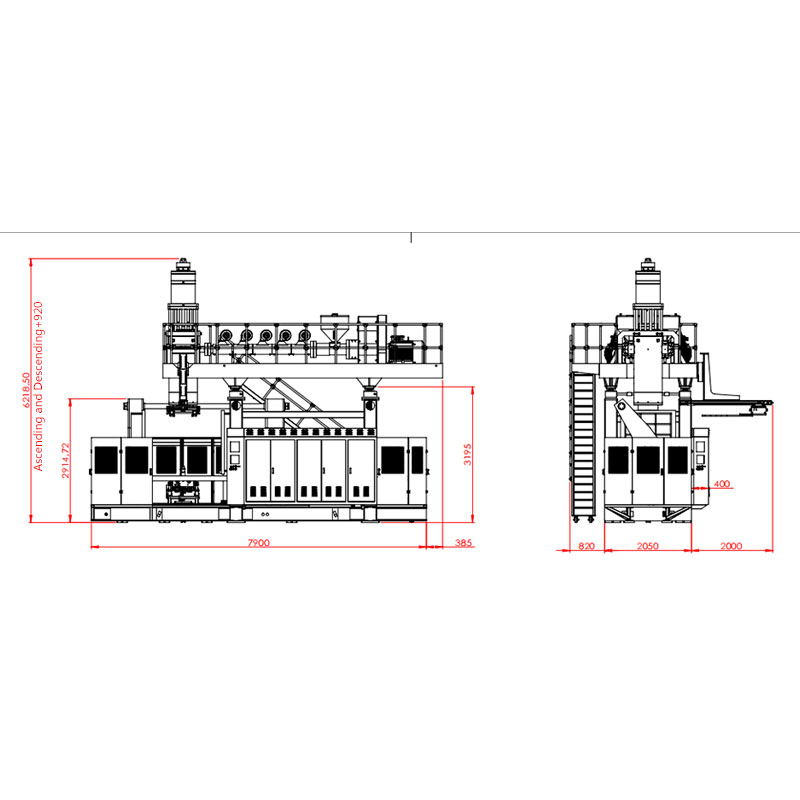

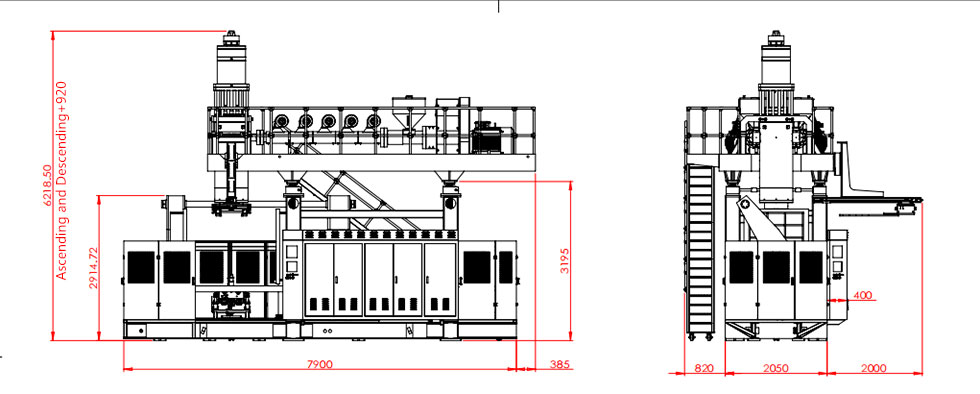

Kujambula

250L accumulate chemical barrel special blow molding machine

Specifications

Serial number	Material PE、PP、ABS、HMWHDPE..	Fixed open- closing type Specialized Machine Series
Serial number	Material PE、PP、ABS、HMWHDPE..	Machine model:KGB200L/LP
Specifications
1	Max container capacity	250 L
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	9.5 M x 4.1 M x 6.5 M
4	Machine weight	39 T
Clamping Unit
1	Clamping force	760 KN
2	Mold platen size(W×H)	1300 MM x 1500 MM
3	Platen opening stroke	800 MM - 1800 MM
4	Platen moving stroke	950 MM
5	Max mold size(W×H)	1100 MM×1700 MM
6	Mold thickness	810 MM-950 MM
Power
1	Servo oil pump motor power	37 KW + 22 KW
2	Servopump displacement	200 L/MIN + 138 L/MIN
3	Blow pressure	0.8 Mpa
4	Air consumption	1.8 M³/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW- 80 KW
Extruder unit
1	Screw diameter	100 MMx2 MM
2	Screw L/D ratio	32 L/D
3	Melting capacit for HDPE	180 Kg/hr x 2 Kg/hr
4	Number of heating zone	6 ZONE
5	Screw heating power	30.2 KW
6	Screw fan power	0.6 KW
7	Extruder motor power	90 KW x 2 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.8 KW
3	Max die-pin diameter	450 MM
4	Accumulator capacity	25 L
5	(PE)Accumulator weight	18 KG
