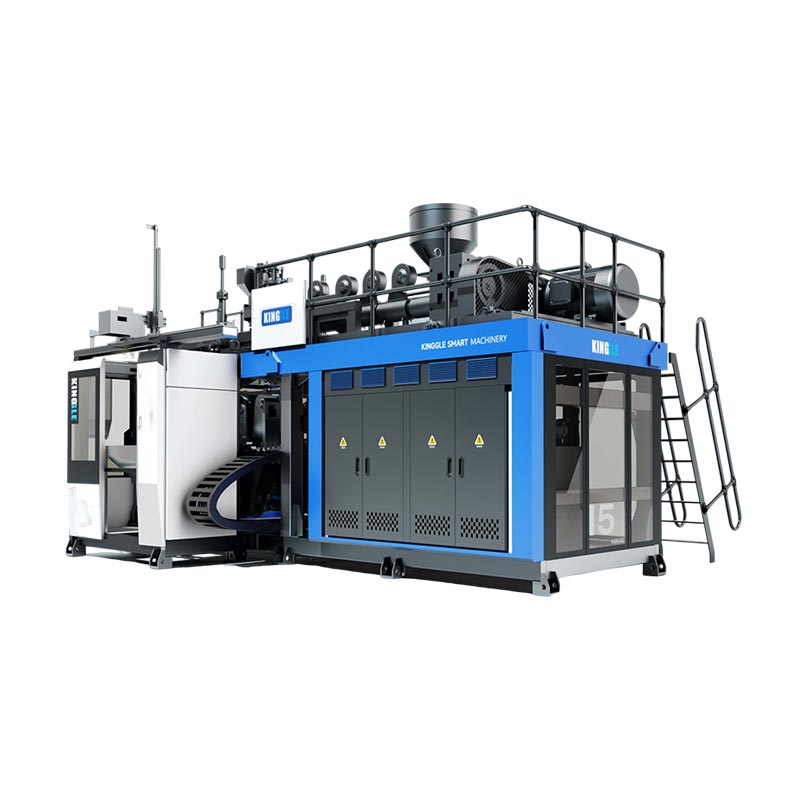

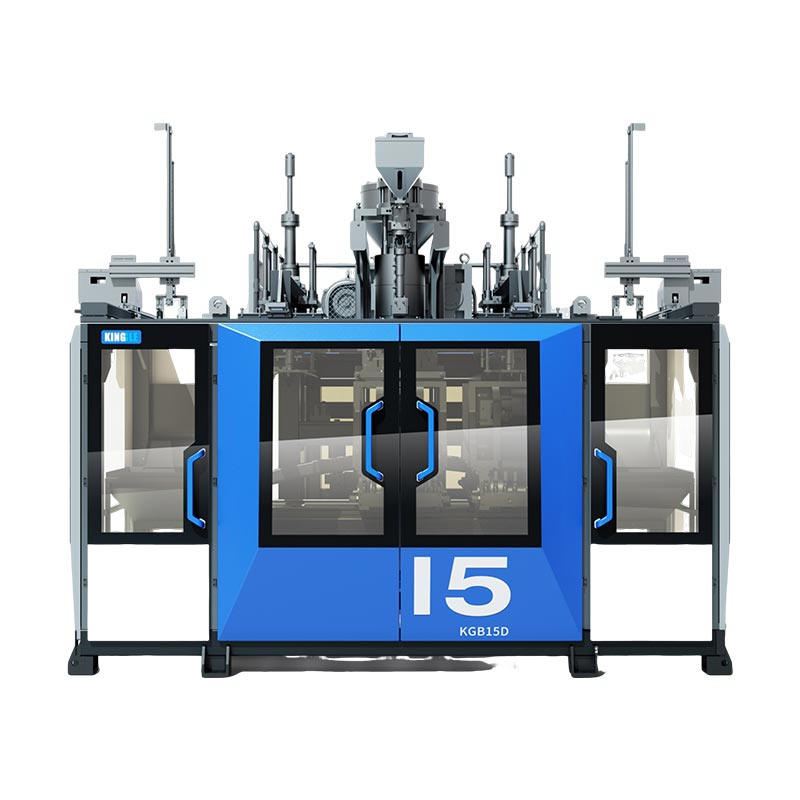

15L Stud Station Makina Opanga Makina

Model:KGH15D

Sinthani zopanga zanu za botolo lanu ndi kg15d, 15l state station yowombera makina owumba omwe amatenga mabotolo apulasitiki omwe amapeza mapulogalamu atsopano! Zabwino kwa 10L zokha zowonjezera pamakina ojambula ngati 10l ndi 15l mabotolo, zimakuthandizani kuti muwonongere msika ndi zotulutsa zapamwamba.

Buku: 15LKulemera: 18.5t

Tumizani Kufunsira

Mafotokozedwe Akatundu Specification Application

Sinthani zopanga zanu zokhala ndi Khg15d, zapamwamba kwambiri 15l station yowombera makina owumba omwe amakweza botolo la pulasitiki lowonjezera Kupanga kukwera kwamiyala yatsopano. Zopangidwa kuti zizigwiritsidwa ntchito ngati 10l ndi 15l mabotolo, KHGY15D imatsimikizira bwino kupanga zotengera zapamwamba kwambiri ndi kulondola mwapadera. Kaya zopanga zazikulu kapena zachikhalidwe Mapulogalamuwa, makinawa amatsimikizira kutulutsa kwapamwamba, kukuthandizani kuti mukhale patsogolo pamsika. Ndi mawonekedwe apamwamba komanso ntchito yodalirika, KGH15d imapereka yankho labwino la mabizinesi kufunafuna kuti athetse kupanga ndi kuwonjezera mtundu.

Mawonekedwe ndi zabwino

Onjezerani kupanga kwanu ndi gawo lathu lopitilira kawiri mosalekeza makina owumbirako, opangidwira kuti afike ku 15l. Ndi makonzedwe osinthika (2, 3, kapena 4 ofatsa mitu yambiri), imapereka mabotolo osiyanasiyana, kuchokera m'mabotolo ang'onoang'ono okhala ndi mabotolo akulu 15l ndi mitsuko ya pulasitiki, ndikuwonetsetsa kuti:
Zoyenera kugwiritsa ntchito shampoo, zotchinga zopatsirana, ndi makeke azodzikongoletsa, makinawa amapereka ndalama zothamanga kwambiri pomwe ndikusunga bwino kwambiri. Kupanga kwake komanso kapangidwe kake kothandiza kumachepetsa kuwononga zinyalala ndikuwonjezera njira yothandizira yomwe imakulitsa kubweza kwanu pa ndalama.

Specifications

serial number	Material PE、PP、PVC、PA...	High speed movement mode(curved arm)
serial number	Material PE、PP、PVC、PA...	Machine model:KGH15D
Specifications
1	Max container capacity	15 L
2	Output(dry Cycle)	500 PC/HR x2 PC/HR
3	Machine Dimension(L×W×H)	5.6 M x 3.9 M × 3.5 M
4	Machine weight	18.5T
Clamping Unit
1	Clamping force	200 KN
2	Mold platen size(W×H)	580 MM x500 MM
3	Platen openingstroke	320 MM -800 MM
4	Platen moving stroke	720 MM
5	Max mold size(W×H)	700 MM -500 MM
6	Mold thickness	350 MM -450 MM
Power
1	Servooil pump motor power	22 KW
2	Servo pump displacement	200 L/MIN
3	Blowpressure	0.6 Mpa
4	Air consumption	1.5 M³/MIN
5	Cooling water pressure	0.2 Mpa - 0.3 Mpa
6	Water consumption	140 L/min
7	Average energy consumption	40 KW -50 KW
Extruder unit
1	Screw diameter	90 MM
2	Screw L/D ratio	25 L/D
3	Melting capacit for HDPE	180 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	16 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	55 KW
Die head
1	Number of heating sections	3 * 8 ZONE
2	Heating power	6.5 KW
3	Maxdie-pin diameter	220 MM
4	Accumulator capacity	240 MM -280 MM
5	(PE)Accumulator weight	170 MM
