Makina apadera owundana

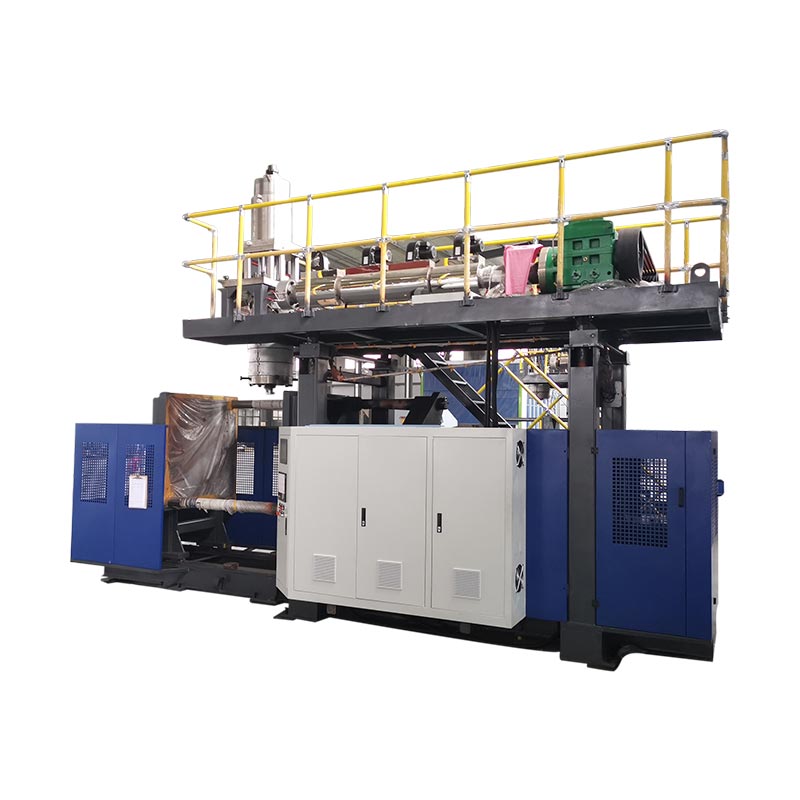

Model:KGB110A-ABS

Sinthani magawo anu auto omwe ali ndi KGB110A - ABS Angwiro kwa obera a ab abt akuwotcha makina owumba amafunikira monga othawa komanso matalala, zimakuthandizani kuti muzitsogolera pamsika wamagalimoto ndi apamwamba kwambiri.

Buku: /Kulemera: 25t

Tumizani Kufunsira

Mafotokozedwe Akatundu Specification Application

Kgb110a wopanga. Makina apadera a scourse youndana yowumbidwa ndi zotamandira kwambiri ndikuwomba Pangani malo abwino kuti musunge nthawi yotsatira. Ndi makina osinthika pulani kuti mukwaniritse zogulitsa zamakampani, sungani ndalama zolipirira.

Mawonekedwe ndi zabwino

Kukumba kwambiri ukadaulo kumatha kupereka mayankho ogwira ntchito osanjikizana ndi makasitomala omwe amathandizira kuchepetsa mtengo; Amathanso kupanga zosanjikiza kawiri
Ntchito zazikulu za 110A-ibs abzala makina owumba ndi mphamvu yolimba komanso yodalirika yamagetsi. Kutumiza kopitilira komanso kokhazikika kumawonekera kutseguka kwachikulire ndi kutseka kwa nkhungu, kosalala komanso koyenera kwa ntchito yayitali komanso zolimbitsa thupi nthawi zonse.

Specifications

serial number	Material PE、PP、ABS、HMWHDPE...	Specialized Machine Series
serial number	Material PE、PP、ABS、HMWHDPE...	Machine model:KGB110A-ABS
Specifications
1	Max container capacity	/
2	Output(dry Cycle)	300 PC/HR
3	Machine Dimension(L×W×H)	6.6 M x 4.2 M x 5.2 M
4	Machine weight	25 T
Clamping Unit
1	Clamping force	1000 KN
2	Mold platen size(W×H)	1100 MM x1600 MM
3	Platen openingstroke	600 MM -1600 MM
4	Platen moving stroke	600 MM
5	Max mold size(W×H)	1000 MM×1400 MM
6	Mold thickness	610 MM -750 MM
Power
1	Servooil pump motor power	30 KW + 22 KW
2	Servo pump displacement	200 L/MIN +138 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1.8 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	120 L/min
7	Average energy consumption	70 KW - 80 KW
Extruder unit
1	Screw diameter	110 MM
2	Screw L/D ratio	28 L/D
3	Melting capacit for HDPE	180 Kg/hr -220 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	24 KW
6	Screw fanpower	0.6 KW
7	Extruder motor power	90 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	38.5 KW
3	Maxdie-pin diameter	450 MM
4	Accumulator capacity	12(20) L
5	(PE)Accumulator weight	9(15) KG
